The in-house system applies controlled airflow and mechanical disturbance at the same time, then records vibration and meter outputs so behavior can be reviewed against a defined test condition.

Request a QuoteBack to Testing & Calibration Systems

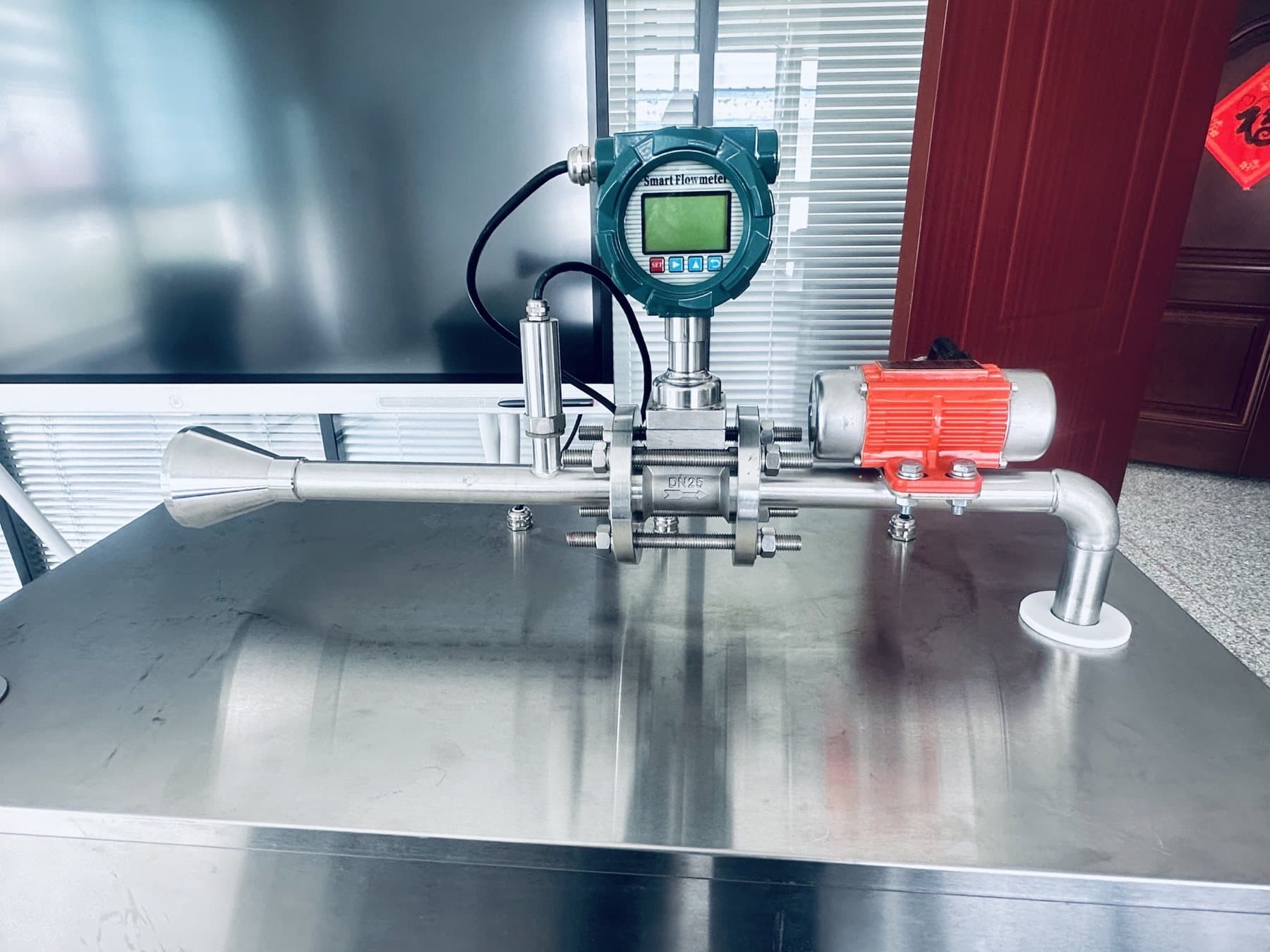

Real Velomac vibration measurement test system with vortex flowmeter and vibration motor
Real in-house airflow and vibration test setup.

Applied variables

Airflow + vibration

Coordination

PLC controlled

Data collection

Real-time

Representative program

Approx. 1g

What the System Evaluates

Observe the meter while the disturbance is known

Static false output

Check whether vibration creates a flow signal with no airflow.

Dynamic variation

Observe frequency and flow output under airflow and vibration.

Mode comparison

Compare signal-processing states under the same program.

Test-System Structure

Airflow, disturbance and sensing on one platform

  • Blower establishes the airflow path
  • Electric regulating valve sets the flow condition
  • Vortex flowmeter is mounted in the test line
  • Vibration motor applies mechanical disturbance
  • Vibration sensor is positioned near the sensing area
  • PLC and software coordinate control and collection
Labeled structure diagram of the vibration measurement test system
Structure drawing showing the meter, vibration source, sensor, inlet and support structure.

Test Process

A compact controlled sequence

  1. 1. Establish airflow

    Start the blower and set the regulating valve.

  2. 2. Stabilize the point

    Confirm the required flow condition.

  3. 3. Apply disturbance

    Run the vibration motor at the defined condition.

  4. 4. Collect together

    Record vibration, flow and equipment status.

  5. 5. Compare states

    Review static or dynamic behavior against the program.

Controlled Conditions

Representative anti-vibration test program

These values describe one recorded program, not the fixed limit of the test system.

Test itemRecorded condition
VibrationApproximately 1g three-axis acceleration
DurationApproximately 5 minutes
Static stateNo flow
Dynamic stateLow velocity at approximately 5 m/s
Outputs reviewedVibration frequency, instantaneous flow and accumulated flow

Equipment and Data Path

Supporting system visuals

Rendered overview of the vibration measurement test system
System overview showing the meter, vibration sensor and motor.
Airflow-loop diagram for the vibration measurement test system
Airflow loop with regulating valve, vibration devices and blower.

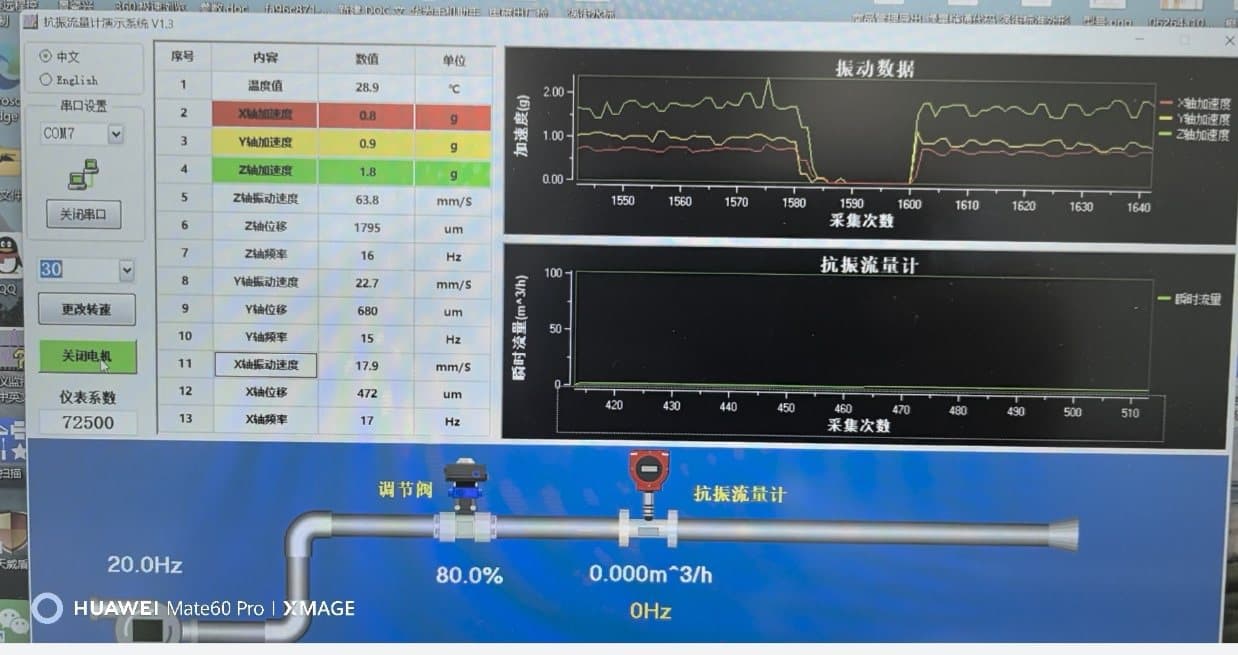

Representative static test record with feature analysis enabled
Representative output screen from a defined anti-vibration program.

Data Collected

Relate meter output to the applied condition

The software interface can display vibration frequency, instantaneous flow, accumulated flow, regulating-valve opening and blower status.

Review basis

Vibration + flow + equipment status

Technical Review Input

Define the expected field disturbance

  • Source of vibration
  • Approximate frequency or acceleration when known
  • Minimum, normal and maximum flow
  • Pipe support and installation layout
  • Static or dynamic test objective
  • Meter output or signal to be reviewed

Related Test Capabilities

Connect the test system to the product development

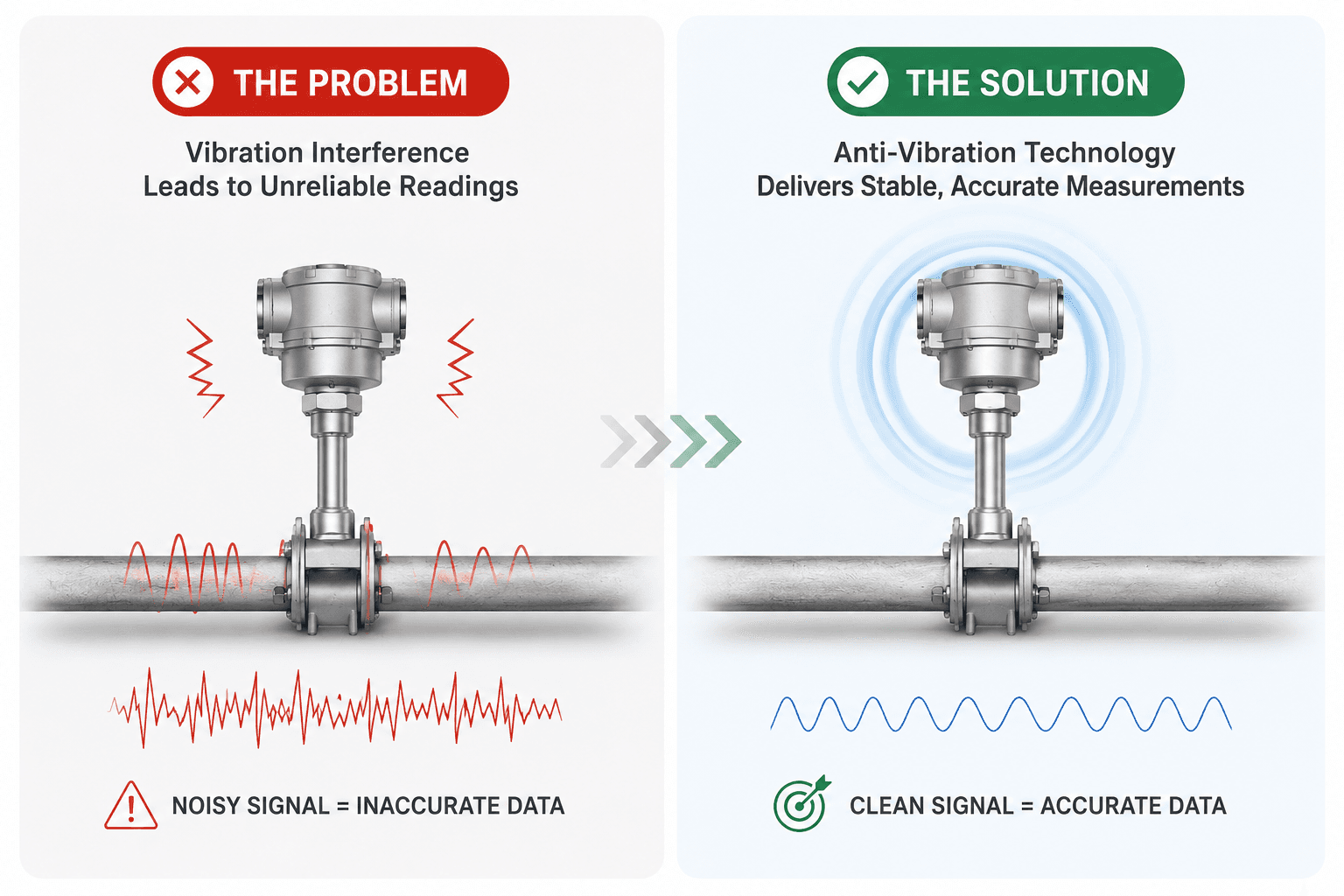

Wide-turndown anti-vibration vortex flowmeter measurement concept
Sensor & Product Development

Wide-Turndown Anti-Vibration Vortex Flow Meter

Adaptive filtering and wide flow coverage for pipelines affected by changing load and vibration.

View Details
Velomac non-wetted piezoelectric vortex sensor waveform comparison
Sensor & Product Development

Non-Wetted Piezoelectric Vortex Sensor

Keeps the piezoelectric element outside direct media contact while retaining the vortex signal.

View Details

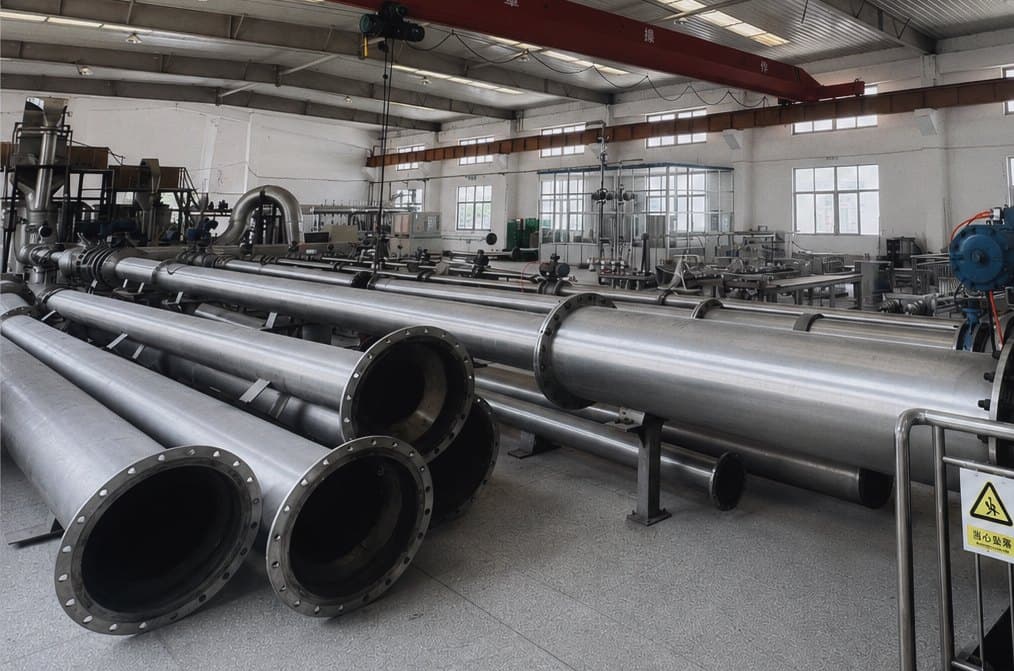

Velomac in-house liquid flow calibration workshop and circulation test lines
Testing & Calibration Systems

In-House Liquid Flow Calibration Bench

Cross-checks displaced liquid volume against measured mass using an in-house dual-reference bench.

View Details

Selection support

Review the expected mechanical and flow disturbance.

Share the vibration source, available vibration data, flow condition, pipe arrangement and the meter output to be reviewed.
