Smart Vortex Upgrade for Chemical and Pharmaceutical Processes

This application review considers when an existing orifice-plate measurement point may be suited to a vortex alternative, based on pressure loss, operating range, maintenance arrangement and available installation geometry.

Request a Quote Back to Application Upgrade Projects

Vortex flowmeter installed on a chemical process utility line — A replacement decision depends on the actual process and installation condition.

Existing method

Orifice plate

Review direction

Vortex alternative

Typical utilities

Steam, water, gas

Existing Situation

Why an established measurement point may be reviewed

Permanent pressure loss

The restriction can increase the work required from pumps, compressors or boilers.

Usable operating range

Changing batch and utility loads can move below the practical range of the existing setup.

Impulse-line maintenance

Tapping points, impulse lines and associated hardware add service work.

Installation geometry

The current straight run, pipe stress and maintenance access must be checked.

Upgrade Assessment

Review the real operating envelope first

Pipe size alone is not enough to decide whether an orifice-to-vortex change is suitable.

Medium and composition
Minimum, normal and maximum flow
Operating and design pressure
Operating and design temperature
Pipe size and available straight run
Vibration and upstream disturbance
Installation space and maintenance access
Required output and compensation
Wetted material and sanitary requirements

Proposed Measurement Direction

Evaluate the vortex option against the existing assembly

A vortex meter removes the separate impulse-line arrangement, but it still needs suitable flow, straight pipe, vibration control and media conditions.

Check the minimum usable vortex velocity
Review permanent pressure-loss difference
Confirm temperature and pressure compensation needs
Check condensate behavior, orientation and drainability
Keep the existing method when the operating condition favors it

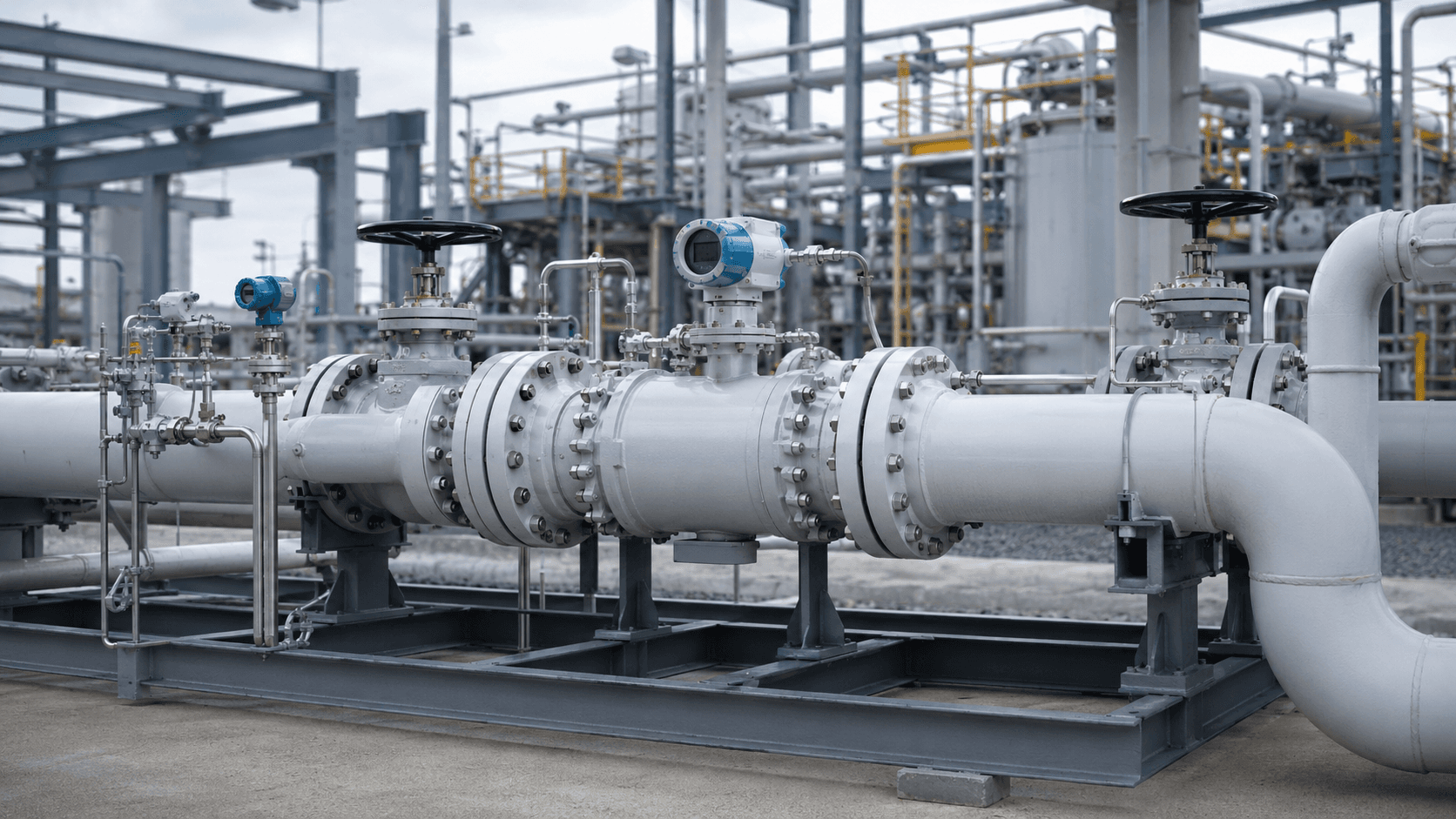

Industrial utility line used for pressure-loss and energy review — Pressure-loss review is one part of the upgrade decision.

Comparison Basis

Before and upgrade review points

These values describe the reviewed operating basis. Actual results depend on the existing orifice design and process condition.

Review item	Existing orifice basis	Vortex review basis
Permanent pressure loss	8–13 times the compared vortex meter	Lower restriction in the reviewed comparison
Rangeability	1:3 nominal; 1:5 stated operating coverage	Liquid 1:30 in the reviewed comparison
Straight pipe	20D upstream; 10D downstream	10D upstream; 5D downstream in the reviewed comparison
Assembly	Pressure taps, impulse lines and DP transmitter	No separate impulse-line arrangement
